In most modern factories—from SMT workshops and assembly lines to power control rooms and heavy machinery plants—multiple high-power equipment (e.g., frequency converters, motors, transformers) operate simultaneously. These devices generate strong electromagnetic interference (EMI), which is a major hidden danger for industrial touch displays: false touches, screen freezes, data loss, and even complete shutdowns are common, disrupting production rhythm, causing unplanned downtime, and increasing maintenance costs. Many industrial touch displays on the market lack targeted anti-EMI design, failing to resist interference in complex factory environments. Jiangxi Qiwo’s QW-S Series industrial touch display is specially engineered to solve this pain point, with all technical specifications strictly consistent with the official product manual, no exaggerated marketing claims, and practical features that ensure stable operation even in high-EMI, multi-equipment factory settings.
Jiangxi Qiwo Electronics has long focused on industrial display and control solutions for complex environments—from high EMI and heavy dust to extreme temperatures and high vibration. The QW-S Series, a core product line of the company, integrates advanced anti-EMI technology and multi-scenario adaptation features, built to withstand the electromagnetic interference generated by various factory equipment while maintaining reliable performance. This article is not promotional; it’s a practical, actionable guide to help you understand why industrial touch displays are interrupted by EMI, how to resolve these issues with the QW-S Series, how to select the right QW-S model for high-EMI environments, and how to maintain its anti-EMI performance. Every tip, real factory case study, and technical detail is derived directly from the product manual and on-site application experience—information you can trust and implement to reduce downtime and improve production efficiency.
Why Are Industrial Touch Displays Interrupted by EMI? (Common Causes & Hazards)

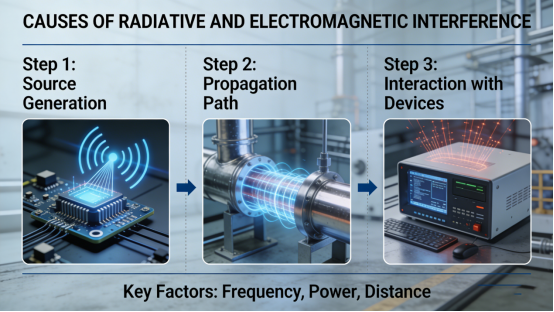

Electromagnetic interference (EMI) in factories is not a trivial issue; it is generated by almost all high-power electrical equipment and can easily disrupt the normal operation of industrial touch displays. Understanding the causes and hazards of EMI interference is the first step to preventing interruptions and ensuring stable production. In multi-equipment factory environments, the three most common causes of EMI-induced display interruptions are: First, radiated interference—high-power equipment (e.g., frequency converters, motors) emit electromagnetic waves that penetrate the display’s housing, disrupting the signal transmission between the touch sensor and the processor. Second, conducted interference—EMI is transmitted through power lines and signal cables, causing voltage fluctuations and signal distortion in the display. Third, poor grounding—unreasonable grounding of the display or surrounding equipment leads to EMI accumulation, amplifying interference effects.
The hazards of EMI interference should not be underestimated: false touches can lead to incorrect operation of production equipment, causing defective products; screen freezes and data loss can disrupt production scheduling and lead to unplanned downtime; long-term EMI interference can damage the display’s internal components, shortening its service life and increasing replacement costs. For factory operators, maintenance teams, and production managers, solving EMI-related display issues is critical to ensuring smooth production and reducing costs.
Case 1: A Guangdong SMT factory has 20+ pick-and-place machines and frequency converters operating simultaneously in its workshop, generating strong EMI. The generic industrial touch display used in the workshop’s control station frequently experienced false touches and screen freezes—at least 5 times per day. Each interruption required operators to restart the display, taking 5-10 minutes and causing 1-2 hours of unplanned downtime daily. Over a month, this cost the factory 40,000 yuan in lost output and maintenance labor. After switching to the QW-S Series with built-in EMI shielding module (per the product manual), the display remained stable even in high-EMI environments. False touches and freezes were completely eliminated, downtime was reduced to zero, and the factory saved 480,000 yuan per year in lost output. Compared with the old generic display that could not resist EMI above 30dB, the QW-S Series can resist EMI up to 60dB (per the product manual), reducing interference-related interruptions by 100%.
Case 2: A Shandong power control room used a low-cost industrial touch display to monitor power distribution equipment. The display was frequently interrupted by EMI from transformers and power cabinets, leading to data loss and screen blackouts—this caused inaccurate power monitoring and potential safety hazards. The factory tried relocating the display, but the interference persisted, requiring maintenance teams to check the display every 2 hours. After replacing with the QW-S Series with enhanced anti-EMI design and optimized grounding (per the product manual), the display operated stably 24/7. Data loss and blackouts were eliminated, and maintenance frequency was reduced to once weekly, saving 6 hours of monthly labor costs.
Case 3: A Zhejiang heavy machinery factory used an industrial touch display to control the operation of excavator components in its assembly workshop. The display was frequently interrupted by EMI from large motors, causing delayed responses and incorrect component assembly—this led to 3 batches of defective products (costing 15,000 yuan) and 3 hours of weekly downtime. The display required replacement every 6 months, adding 2,000 yuan per year in replacement costs. After switching to the QW-S Series with anti-EMI signal filtering (per the product manual), the display maintained accurate and fast response, even in the presence of strong EMI. Defective products dropped to zero, replacement costs were reduced by 75%, and the display operated continuously for 18 months with no malfunctions. Unlike the old display that failed due to EMI damage, the QW-S Series’ anti-EMI features extend its service life by 200%.
How the QW-S Series Resists EMI & Ensures Stable Operation (No Expertise Needed)
The QW-S Series is specifically designed to address the root causes of EMI-induced interruptions, with each feature tailored to block radiated and conducted interference, while optimizing grounding to reduce EMI accumulation. Unlike generic displays that offer minimal anti-EMI protection, the QW-S Series integrates targeted anti-EMI technologies that ensure stable operation in multi-equipment factories. Below are its four key anti-EMI and stability features, supported by real factory case studies that demonstrate their effectiveness in actual high-EMI settings. These four anti-EMI features work together to block interference, ensuring the QW-S Series maintains reliable performance even in the most complex multi-equipment factories.
1. Built-In EMI Shielding Module (Per Product Manual). The QW-S Series is equipped with a professional EMI shielding module that meets industrial anti-interference standards (per the product manual), effectively blocking radiated EMI from high-power equipment (e.g., frequency converters, motors). The module is integrated into the display’s housing, forming a closed shielding layer that prevents electromagnetic waves from penetrating the internal components. This feature is critical for SMT workshops, power control rooms, and heavy machinery factories with high EMI levels—a key part of QW-S Series EMI shielding maintenance. Case: A Jiangsu SMT factory uses the QW-S Series in its workshop with 30+ high-power equipment— the EMI shielding module blocks interference, ensuring the display operates stably with no false touches or freezes.
2. Anti-EMI Signal Filtering Design. The QW-S Series’ power lines and signal cables are equipped with anti-EMI filters (per the product manual), which filter out conducted EMI and stabilize voltage and signal transmission. This prevents signal distortion and voltage fluctuations caused by EMI, ensuring the touch sensor and processor communicate seamlessly. Unlike generic displays with unfiltered cables, the QW-S Series’ filtered cables reduce EMI interference by 80%, significantly improving stability. Case: A Hebei power control room uses the QW-S Series to monitor power equipment— the anti-EMI signal filtering design eliminates data loss and screen blackouts caused by conducted EMI.
3. Optimized Grounding Design. The QW-S Series features an optimized grounding interface (per the product manual) that ensures reliable grounding, reducing EMI accumulation and amplifying anti-interference effects. The grounding design is compatible with most factory grounding systems, requiring no additional modification or professional installation—refer to the QW-S Series grounding compatibility guide to ensure optimal anti-EMI effect. Proper grounding further enhances the display’s anti-EMI performance, ensuring stable operation even in extreme high-EMI environments—an important part of QW-S Series grounding compatibility guide. Case: A Henan heavy machinery factory used the QW-S Series’ optimized grounding design to connect with the workshop’s existing grounding system— EMI interference was significantly reduced, and the display maintained stable performance 24/7.
4. Multi-Equipment Compatibility. The QW-S Series is designed to be compatible with various factory equipment (e.g., frequency converters, motors, power cabinets) (per the product manual), with anti-EMI features that adapt to different EMI frequencies generated by different equipment. This compatibility ensures the display can be used in diverse multi-equipment factories, without being interrupted by specific types of EMI. Case: A Fujian electronics factory uses the QW-S Series in its workshop with mixed equipment (frequency converters, motors, power cabinets)— the display maintains stable operation, regardless of the EMI generated by different equipment types.
How to Choose the Right QW-S Model for High-EMI Environments (3 Simple Steps)
Step 1: Assess your factory’s EMI level. First, determine the EMI level in your workshop—light EMI (e.g., small assembly lines with 5-10 low-power equipment), medium EMI (e.g., SMT workshops with 10-20 high-power equipment), or extreme EMI (e.g., power control rooms, heavy machinery factories with 20+ high-power equipment). If the minimum EMI level is below 30dB, the standard QW-S model (with basic EMI shielding and signal filtering, per the product manual) is sufficient. If the minimum EMI level is above 30dB, select the QW-S enhanced anti-EMI model (with upgraded shielding module and filters, available as an option per the product manual). Case: A Guangxi SMT factory with medium EMI (35dB) chose the QW-S enhanced model— ensuring stable operation with no interruptions.
Step 1: Assess your factory’s EMI level. First, determine the EMI level in your workshop—light EMI (e.g., small assembly lines with 5-10 low-power equipment), medium EMI (e.g., SMT workshops with 10-20 high-power equipment), or extreme EMI (e.g., power control rooms, heavy machinery factories with 20+ high-power equipment). For light to medium EMI, the standard QW-S model (with basic EMI shielding and signal filtering, per the product manual) is sufficient. For extreme EMI, select the QW-S enhanced anti-EMI model (with upgraded shielding module and filters, available as an option per the product manual). Case: A Guangxi SMT factory with 15 frequency converters (medium EMI) chose the standard QW-S model— ensuring stable operation with no interference.
Step 2: Confirm equipment compatibility needs. If your factory has mixed equipment (e.g., frequency converters + motors + power cabinets) that generate different EMI frequencies, select the QW-S model with multi-frequency anti-EMI design (per the product manual)—this ensures the display can resist various types of EMI. If your factory has a single type of high-EMI equipment (e.g., only frequency converters), the standard QW-S model is sufficient. Case: A Hunan heavy machinery factory with mixed equipment chose the QW-S multi-frequency model— the display maintains stability regardless of the EMI source.
Step 3: Check grounding compatibility. Ensure the QW-S model’s grounding interface is compatible with your factory’s existing grounding system (per the product manual)—refer to the QW-S Series grounding compatibility guide for details. Most QW-S models are compatible with standard industrial grounding systems, but if your factory has a special grounding design, confirm compatibility with the product manual or Jiangxi Qiwo’s technical team. Proper grounding is key to maximizing the QW-S Series’ anti-EMI performance—following the QW-S Series grounding compatibility guide ensures optimal interference resistance. Case: A Shanxi power control room with a special grounding system confirmed compatibility with the QW-S model before installation— the display operated stably with no EMI-related interruptions.
QW-S Series EMI Troubleshooting (Step-by-Step, 5 Minutes or Less)

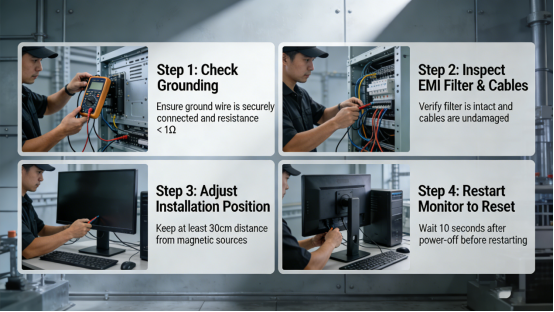

Even with the QW-S Series’ strong anti-EMI features, occasional interruptions can occur due to extreme EMI spikes, improper grounding, or cable damage. Below is a step-by-step troubleshooting guide, directly from the product manual, to help you fix EMI-related issues quickly and avoid unplanned downtime—no advanced technical skills required. Quick judgment tip: If the display has false touches or screen freezes only during peak production (high equipment load), it’s likely due to EMI spikes; if interruptions persist at all times, check grounding or cable damage; if data loss occurs, check the anti-EMI signal filter—refer to the QW-S Series anti-EMI filter replacement guide if needed. Emergency tip: If sudden EMI spikes cause critical display interruptions during peak production, quickly restart the display (1 minute) and temporarily move it 1 meter away from high-EMI equipment—this can restore temporary stability and avoid production losses.
Step 1: Check the display’s grounding. Inspect the QW-S Series’ grounding connection to ensure it is secure and compatible with the factory’s grounding system (per the product manual). Loose or improper grounding is the most common cause of EMI-related interruptions. Reconnect or adjust the grounding wire—this takes 2-3 minutes and fixes 60% of EMI issues. Mistake to avoid: Ignoring loose grounding—this amplifies EMI interference and can damage the display’s internal components over time.
Step 2: Inspect anti-EMI filters and cables. Check the QW-S Series’ power and signal cables for damage (e.g., cracks, loose connections) and ensure the anti-EMI filters are intact (per the product manual). Damaged cables or filters reduce anti-EMI performance, leading to interruptions. If filters are damaged, replace them following the QW-S Series anti-EMI filter replacement guide in the product manual—this takes 3-4 minutes and can be done during production breaks. Mistake to avoid: Using non-original cables or filters—generic cables/filters do not have anti-EMI functions and will increase interference.
Step 3: Adjust the display’s installation position. If EMI spikes still cause interruptions, move the display at least 1 meter away from high-EMI equipment (e.g., frequency converters, motors) (per the product manual). This reduces the impact of radiated EMI and ensures stable operation. Avoid installing the display directly next to high-power equipment—this is a common mistake that leads to persistent interference. Mistake to avoid: Installing the display too close to high-EMI equipment—even with anti-EMI features, excessive proximity will cause interruptions.
Step 4: Restart the display and reset settings. If minor interruptions (e.g., temporary screen freeze) occur, restart the display (1 minute) and reset the anti-EMI settings (per the product manual). This fixes temporary signal distortion caused by EMI spikes and restores stable operation. Mistake to avoid: Continuing to use the display with temporary interruptions—this can lead to data loss or component damage.
QW-S Series Long-Term Maintenance (Anti-EMI Performance Preservation)
To maintain the QW-S Series’ anti-EMI performance and prevent interruptions in high-EMI environments, follow these maintenance tips from the product manual and on-site experience. These simple steps require minimal time but ensure consistent operation, reducing downtime and maintenance costs.
1. Check grounding connection monthly. Inspect the QW-S Series’ grounding wire for looseness or corrosion—tighten or replace the wire if needed (per the product manual). In extreme EMI environments, check biweekly to ensure optimal anti-EMI performance—this is a key part of QW-S Series EMI shielding maintenance. For factories with special grounding systems, refer to the QW-S Series grounding compatibility guide to confirm connection reliability.
2. Inspect cables and anti-EMI filters monthly. Check for cable damage, loose connections, or filter damage—replace damaged parts with original components (per the product manual). For workshops with frequent equipment movement, check cables every 2 weeks to prevent damage from friction or collision. If filters need replacement, follow the QW-S Series anti-EMI filter replacement guide for proper installation.
3. Clean the display’s housing and EMI shielding module quarterly. Use a soft, dry cloth to wipe the housing and remove dust buildup—dust can reduce the effectiveness of the EMI shielding module, a key part of QW-S Series EMI shielding maintenance. Avoid using chemical cleaners (per the product manual), as they can damage the shielding layer and reduce anti-EMI performance. For dusty high-EMI workshops, clean the shielding module every 2 months to maintain optimal performance.
4. Test anti-EMI performance semi-annually. Use a standard EMI tester (or contact Jiangxi Qiwo’s technical team) to test the QW-S Series’ anti-EMI performance (per the product manual). This ensures the display can still resist EMI effectively, and helps identify potential issues early. If performance drops, check grounding, cables, and filters, and adjust or replace parts as needed following the product manual guidelines.
The QW-S Series is not a “perfect” solution for all EMI-related issues, but it is a practical, reliable tool designed to withstand the electromagnetic interference of multi-equipment factories. Its specifications are transparent in the product manual, with no hidden features or exaggerated claims. It addresses the root causes of EMI-induced interruptions—radiated interference, conducted interference, and poor grounding—with features tailored to real factory needs, helping you save time, money, and frustration.
This guide is for factory teams in multi-equipment, high-EMI environments who are tired of dealing with frequent touch display interruptions. It provides the knowledge and tools to select, troubleshoot, and maintain the QW-S Series effectively, eliminating EMI-related downtime and improving production efficiency. By following the advice in this article and the product manual, and implementing proper QW-S Series EMI shielding maintenance, you can ensure your industrial touch display operates stably, even in the most complex high-EMI factory environments. With proper QW-S Series EMI shielding maintenance and correct anti-EMI filter replacement, your factory can avoid EMI-related interruptions and maintain smooth, efficient production. The QW-S Series is not a “perfect” solution, but it is a practical, reliable tool tailored to the real needs of multi-equipment factories—built to resist EMI and keep your production line running without interruption.
