Double visual durability: The matte anti-glare design suppresses glare and reflections, while anti-Newton ring technology eliminates moisture entrapment. A high light transmittance of 78% ensures clear, blur-free images, ensuring clear viewing and minimal scratching in bright sunlight and humid environments.
Immune to physical attacks: ≥3H surface hardness, scratches from hard keys, 10 million pencil dot tests and 1 million line tests, offering minimal friction from sharp objects. A lifespan of 35 million finger clicks ensures reliable operation in supermarket checkouts and industrial control systems.
Rugged in extreme environments: -10-60°C operating temperature (-20-70°C storage temperature), 10-90% RH humidity tolerance, ensuring operation in cold storage, outdoor environments, and humid workshops. ≥20MΩ insulation resistance prevents leakage current (safe for military and medical applications), while a 20-100Ω loop resistance ensures signal accuracy, ensuring zero command deviation for industrial control and automation equipment.
Precise response time: ≤1.5% Its linearity ensures precise touch positioning (enabling reliable medical parameter adjustment and military control). Its <10ms response time ensures “hand-to-screen” responsiveness, ensuring instant response for complex operations.
From the oil and dust of industrial production lines to the extreme temperature swings in the military sector, to the high-frequency disinfection of medical equipment… this resistive touchscreen, with its durability, precision, and adaptability for diverse scenarios, has become the “touchscreen Iron Man” for demanding environments, ensuring a truly robust touch experience in industrial control, military applications, supermarkets, security, healthcare, and other fields.

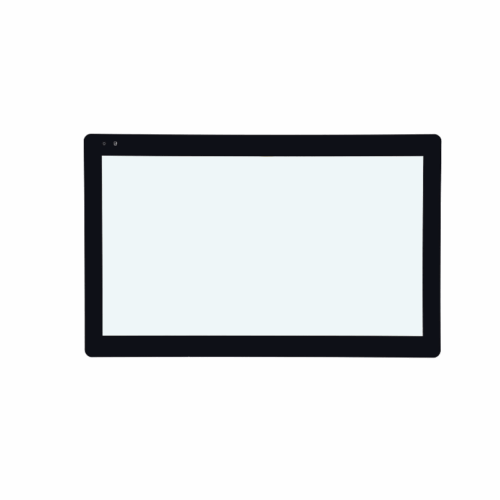

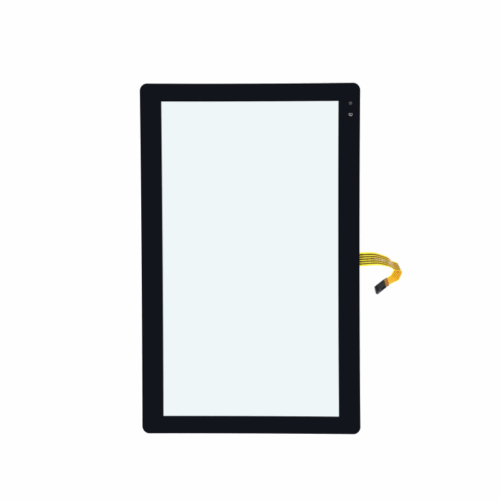

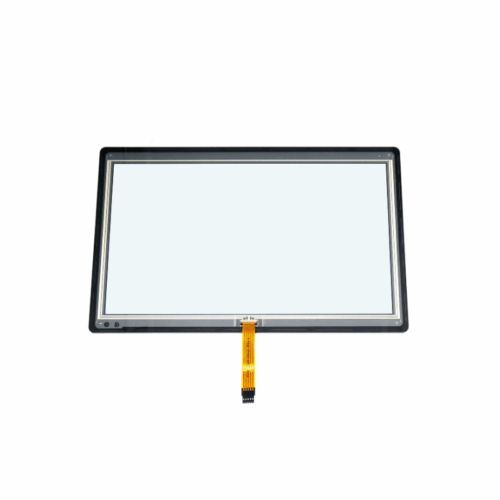

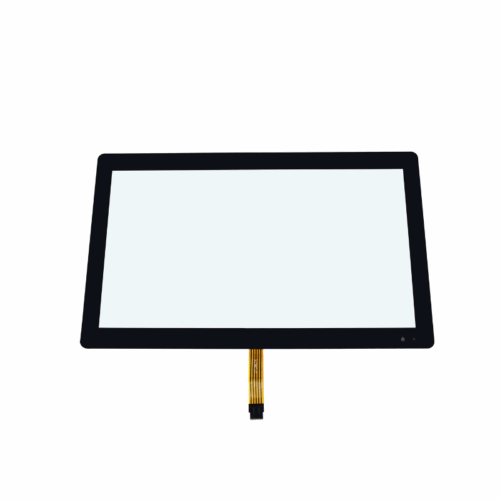

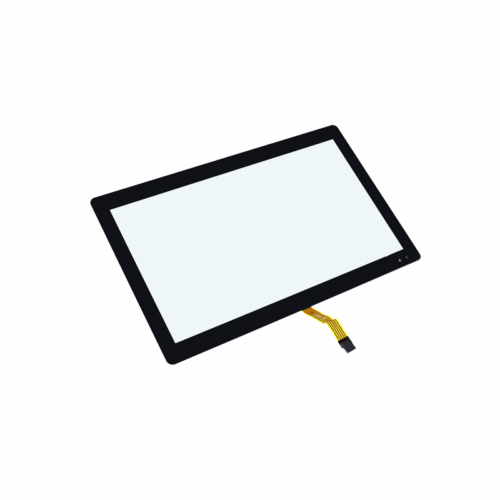

Type: Five-wire resistive touch screen
Size (inches): 15.6 inches
Operating Voltage: DC3V-7V (TYP5V)
Operating Current: 3.5mA max
Insulation Resistance: ≥20MΩ/25V (DC)
Linearity: ≤1.5%
Response Time: <10ms
Light Transmittance: ≥78%
Surface Treatment: Matte anti-glare; anti-Newton rings
Operating Temperature: -10°C to +60°C
Storage Temperature: -20°C to +70°C
Humidity Range: 10%-90% RH at 60°C noncondensing
Surface Hardness: ≥3H
Pencil Dot Life: ≥10 million times
Pencil Line Test: ≥1 million times
Finger Click Life: ≥35 million times
Loop Resistance: 20-100Ω
Applications: Industrial control, military, integrated shopping mall equipment, security (smart home), medical equipment, automation equipment, etc.
