N Series 13.3-inch Industrial Panel PC

Computing Power and Systems: Flexible Matching for Scenario Computing
CPUs cover the J1900 to R5 series, with flexible memory options from 4GB to 64GB and storage from 4GB to 2TB. Compatible with multiple operating systems, including Windows, Linux, and Android, the system offers lightweight control and heavy-duty computing tailored to your needs. It seamlessly integrates with industrial software such as MES and PLC, eliminating computing bottlenecks. Interactive Display: Durable and Precise + Highly Accurate Visuals

Touch Technology: Multi-point capacitive and five-wire resistive dual-mode touchscreen with >87% transmittance, allowing for point-and-click operation even with gloves and oil stains. With a Mohs hardness rating of 7H, the display remains impervious to tool scratches and everyday bumps, creating a screen that appears to be “invisibly armored.”

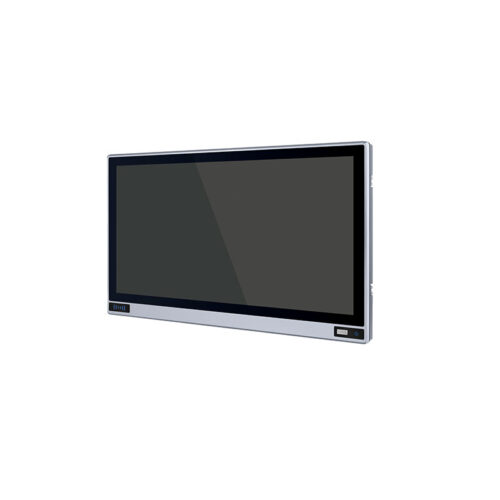

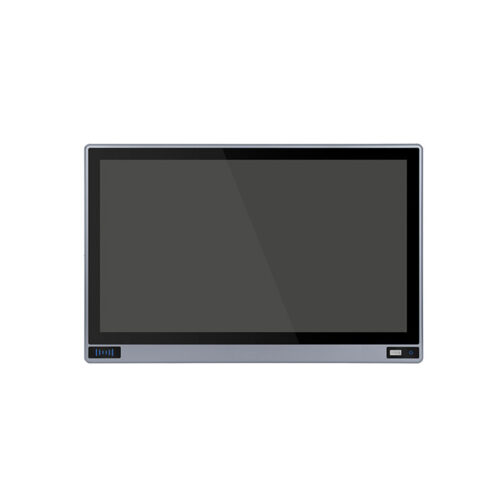

Display: 13.3″ XGA TFT LCD, 1920×1080 resolution, wide viewing angles (L89/R89/T89/B89), 16.7M colors, WLED backlight, 300cd/㎡ brightness, and 3000:1 contrast ratio ensure clear data in bright sunlight and vibrant colors in low temperatures. 30,000-hour MTBF ensures long-term operation without burn-in, extending the lifespan.

Connectivity: Comprehensive Ports + Unlimited Potential

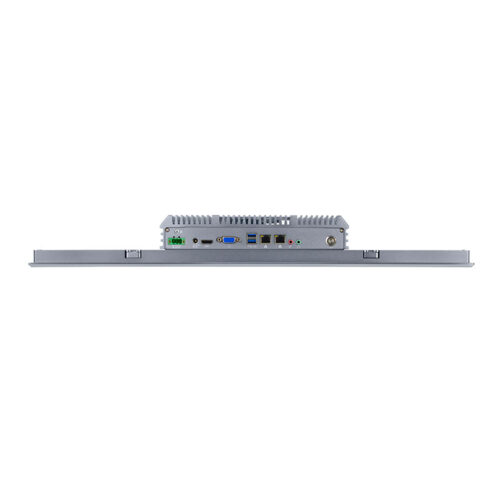

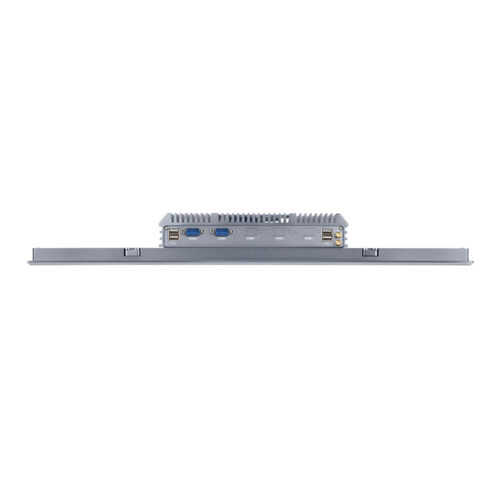

Port Power: 2 x Gigabit Ethernet ports (with ESD protection) Protection, surge resistance, and dust resistance), 2 x USB 3.0 + 2 x USB 2.0 for high-speed transmission, 1 x RS232/485 + 5 x RS232 (1 convertible to RS485) for serial device coverage;
Unlimited expansion: The Mini PCIe slot can accommodate WiFi/4G/5G modules. Front-mounted USB, reset button, and card swipe area provide instant operation, allowing for on-site debugging and data collection.

Environmental Adaptability: Rock-solid in Extreme Conditions

Wide Voltage and Durability: DC12V power supply supports a wide voltage input range of 9-36V, resistant to factory voltage fluctuations;

Temperature and Humidity Ruggedness: Operating temperature range of -20-60°C (optional -40-70°C wide range), storage temperature range of -30-80°C, 5-95% humidity (non-condensing), and front panel IP65 protection – withstands dusty production lines, humid warehouses, and outdoor temperatures, ensuring 24/7 operation without interruption. Physical Design: Rugged + Flexible Deployment

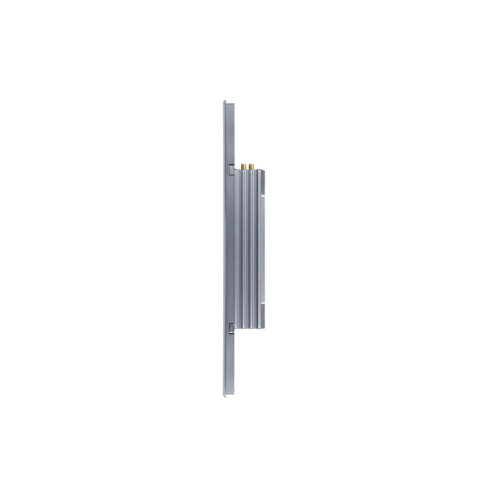

The 324.8×196.4mm cutout accommodates standard installations, while the 335.8×207.4×55.89mm chassis offers both compactness and expandability. Its sturdy construction, weighing only 4.2kg net (4.8kg gross), is compatible with various mounting options, including wall-mounting and embedded installation, allowing for easy installation on production lines, in cabinets, and on workstations.
